60T Fire resistance PU Sandwich Panel Line Discontinuous

Brand Name : ZC

Model Number : ZC-LD24M

Certification : CE/ISO

Place of Origin : china

MOQ : 1

Price : Negotiation

Payment Terms : TT or LC

Delivery Time : on condition

Packaging Details : wood

Product name : pu sandwich panel line

Production speed(m/min) : (Adjustable)3-8

Total size(Length×Width×Height) : 130000×15000×6000

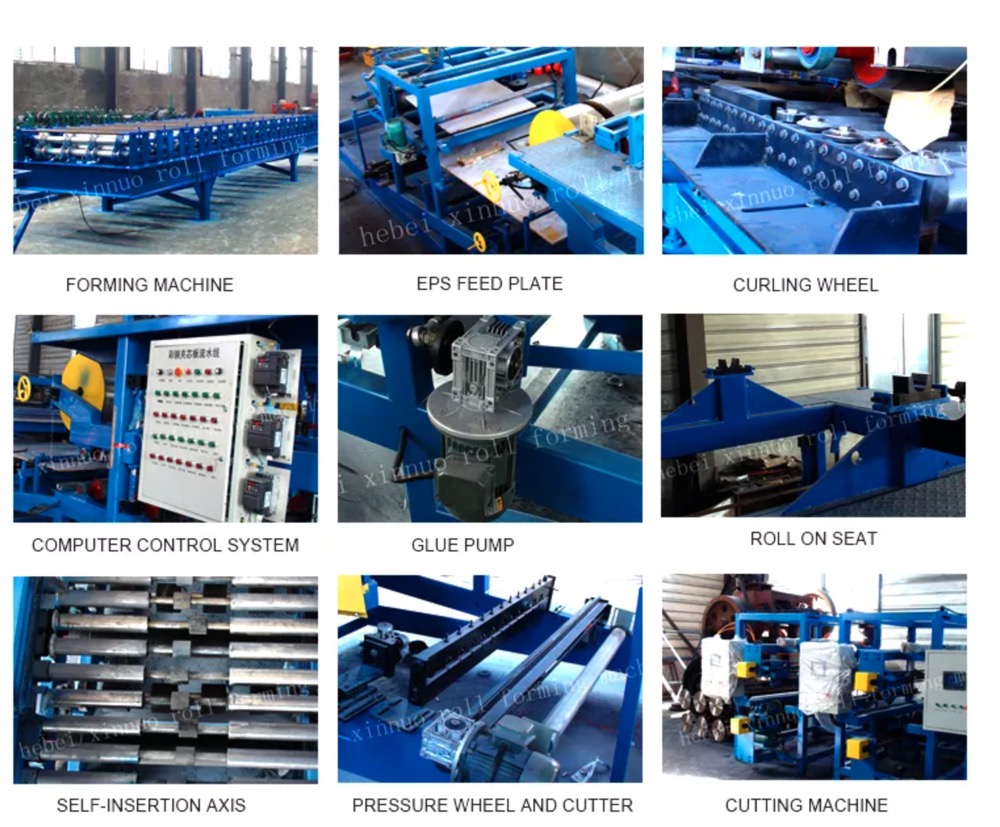

Core Components : forming machine

Advantage : waterproof, Fire resistance,lightness

Inner material : EPS, Rock Wood

Roller material : Carbon steel 45#

Blade Material : Blade Material:

Contact Now

Discontinuous PU Sandwich Panel Press Production Line (2+2, 1+1 or 1 Car)

The production line of the machine to absorb a variety of advantages of the press,the company designed and manufactured by our company series two into two out of the press is mainly used in the production of sandwich panels,laminating machine mainly is composed of a machine frame and load template, clamping way adopts hydraulic driven,carrier template water heating mold temperature machine heating, ensure the curing temperature of 40 DEGC.Laminator can tilt the whole of 0 to 5degrees.For the convenience of the workpiece material and to take action and move up and down template to automatically import and laminating machine; the layer four mobile template can be alternated between production and improve the production efficiency.

Laminating machine parts
number of plies	2+2	Load the template size	12500*1200mm
mould height	250mm	clamping force	280kgf
working oil pressure	15mpa	Heat the water pressure	0.2mpa
water temperature	85℃	voltage	380V/50HZ
power	120kw	weight	60T

Travelling form
Upper mobile template operation level	1052mm
speed of mobile template driven	360mm/s
lower speed of mobile template driven	693mm

Track component
orbit altitude	170mm	Track length	40500mm
Number of sets of orbit	2sets	lay direction	Laminating machine around both ends
